Product Details:
|
| Protection Level: | IP65 Dynamic (front Panel) | Material: | Silicone Rubber |
|---|---|---|---|
| Switch Type: | Membrane Key Switch Technology | Interface: | USB/PS2 Optional |
| Dimensions: | Keyboard: 315.0mm X 108.0mm (L X W) Touchpad: 80.0mm X 49.0mm (L X W) | Keyboard Layout: | 102 Keys + 2 Mouse Buttons |
| Key Lifespan: | >5 Million Actuations | Backlight: | White |
| Keyword: | EMC Keyboard, Military Keyboard, Rugged Keyboaard | ||
| High Light: | 102 Keys EMC Keyboard,Dustproof EMC Keyboard,IP65 dynamic Military Keyboard |
||
102 Keys EMC Keyboard With Waterproof And Dustproof Function
Introducing the EMC Keyboard –102 keys IP65 dynamic sealed & ruggedized silicone rubber military keyboard with sealed tough touchpad with 400DPI resolutions for fast cursor position, with numeric keypad on the right side of keyboard and 12 function keys on top line for easy operation, using reinforced special membrane switch key technology with key stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, accurate and fast input, there will be no key value missing, no stuck key, no repeated key value output during the keyboard operation, The keyboard built-in ultra-thin metal frame and ultra-thin metal reinforcement bottom plate combine the keyboard seal reinforcement into a professional whole, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable white backlight included. Embedded installation mode. Which meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
EMC KEYBOARD DIMENSIONS : Keyboard: 315.0mm x 108.0mm (L x W) Touchpad: 80.0mm x 49.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 102 keys + 2 mouse buttons |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm X 12.0mm for normal keys, 21.8mm x 12.0mm for enter key and 66.7mm x 12.0mm for space bar key |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | ≈0.8KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | membrane key switch technology |
| Interface | USB/PS2 optional |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +60℃ |
| Storage temperature | -45℃ to +70℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
|
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
|
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
The EMC Keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
EMC Keyboard provides technical support and service to help customers get the most out of their product. Customers can contact EMC Keyboard's technical support team for assistance with product setup, troubleshooting, software installation, and general usage.
EMC Keyboard also offers a wide range of services, including warranty repair and replacement, product customization, and extended warranties.
Packaging and Shipping for EMC Keyboard:
The EMC Keyboard will be securely packaged in a cardboard box, using bubble wrap to protect it within the box. The box will be labelled with the product name and any necessary warnings. It will be shipped via a trusted courier, and tracking information will be provided to the customer.

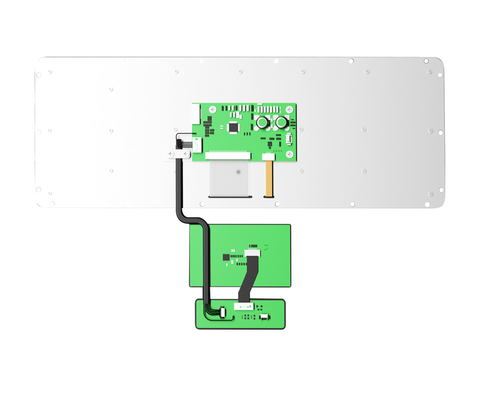

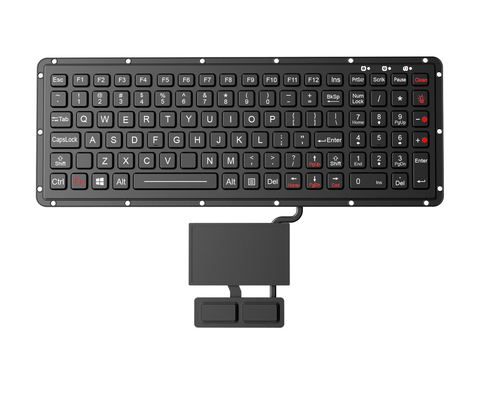

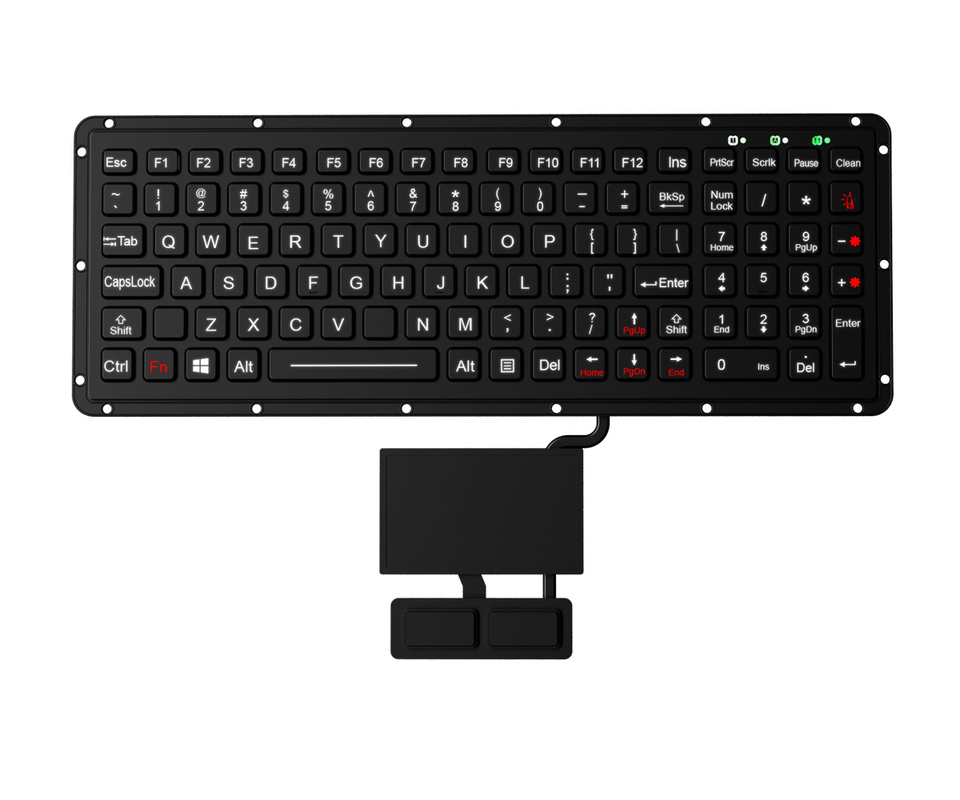

MEC KEYBOARD ACTUAL PHOTOS
