Product Details:
|
| Dimensions: | 66.0mm X 50.0mm (L X W) | Interface: | IIC |
|---|---|---|---|
| Material: | Plastic | Mouse Button: | 2 Mouse Button |
| Mounting Method: | Panel Mount | Keyword: | Touchpad, Industrial Toupad, Touchpad Mouse |
| Protection Level: | IP65 | Name: | IP65 Industrial Touchpad With 2 Micro Key Switch Buttons IIC Interface |
| High Light: | 2 Micro Key Buttons Industrial Touchpad,IIC Interface Industrial Touchpad,Industrial Plastic Mouse Touchpad |
||
DESCRIPTION FOR INDUSTRIAL TOUCHPAD: K-TEK-TP65-DML-25KV+2KEY is a high performance humanize designed capacitive touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers, which adopts IIC communication protocol (PS2 protocol optional; it can also be connected with an external adapter board to convert to USB protocol). With 2 fully sealed waterproof and oilproof mouse buttons with micro key switch technology and plastic keycap for comfortable tactile feeling. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) and MIL-STD-461G (EMC, EMI, EMS, ESD) optional, which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 66.0mm x 50.0mm (L x W)
| INDUSTRIAL TOUCHPAD MECHANICAL DATA | |
| Keys | 2 keys |
| Key Switch | Micro key switch technology |
| G.W. | 0.20KGs |
| INDUSTRIAL TOUCHPAD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Current rating (active mode) | < 10 mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | IIC |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +60℃ |
| Storage temperature | -45℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| INDUSTRIAL TOUCHPAD RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc. |

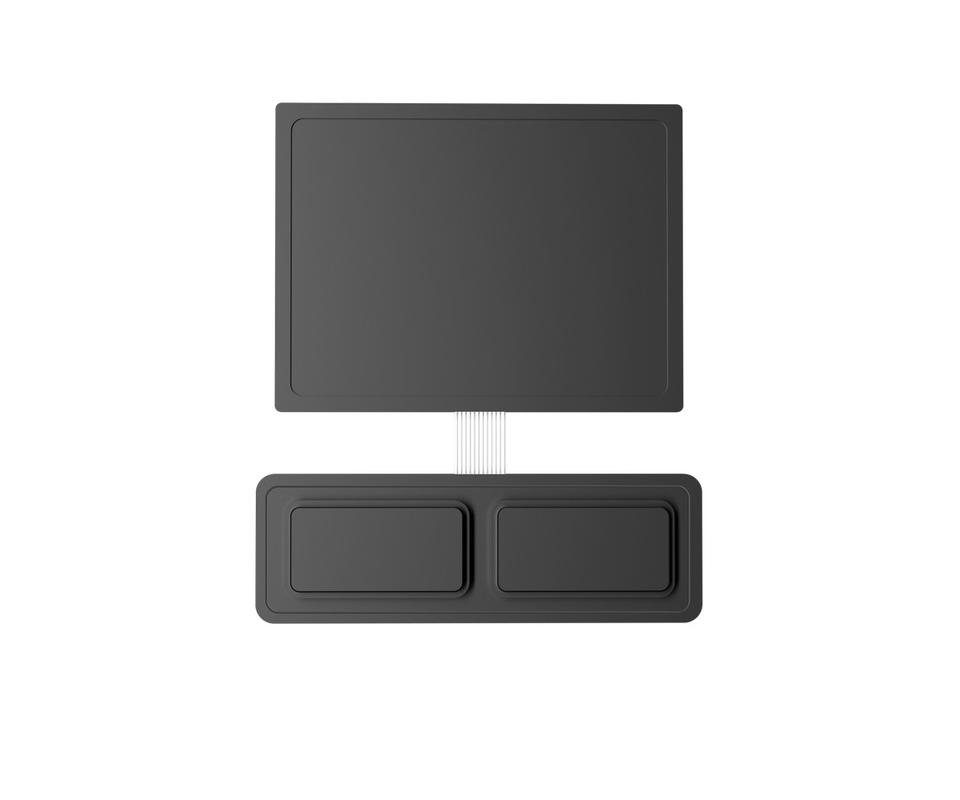

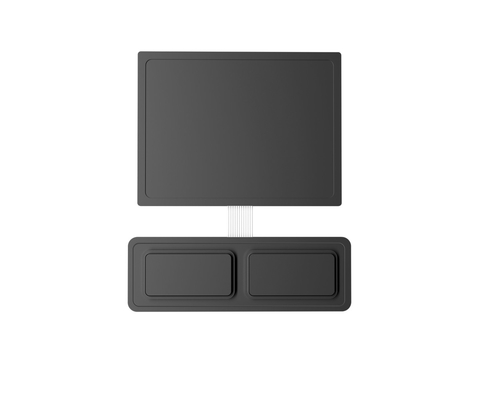

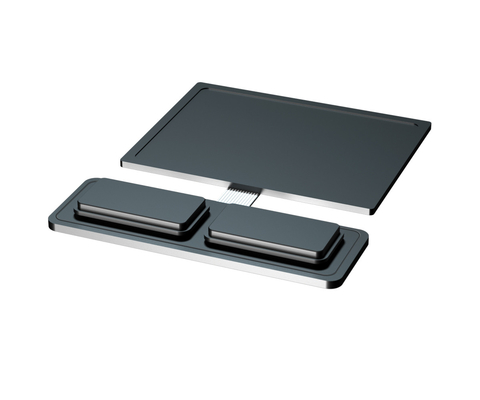

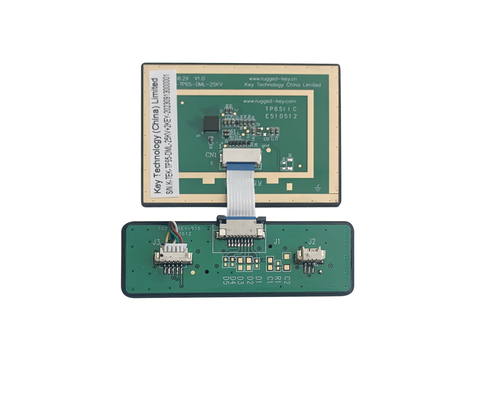

INDUSTRIAL TOUCHPAD ACTUAL PHOTOS:
