Product Details:
|
| Switch Life: | More Than 5 Million Of Operations | Type: | Military EMC Keyboard |
|---|---|---|---|
| Cable Length: | 0.8m | Warranty: | 1 Year |
| Interface: | USB | Weight: | 2.5kg |
| Name: | EMC Keyboard | Switch Type: | Carbon-on-gold |
| High Light: | Military Keyboard With Touchpad,USB 2.0 Interface Industrial Keyboard,0.8m Cable EMC Keyboard |
||

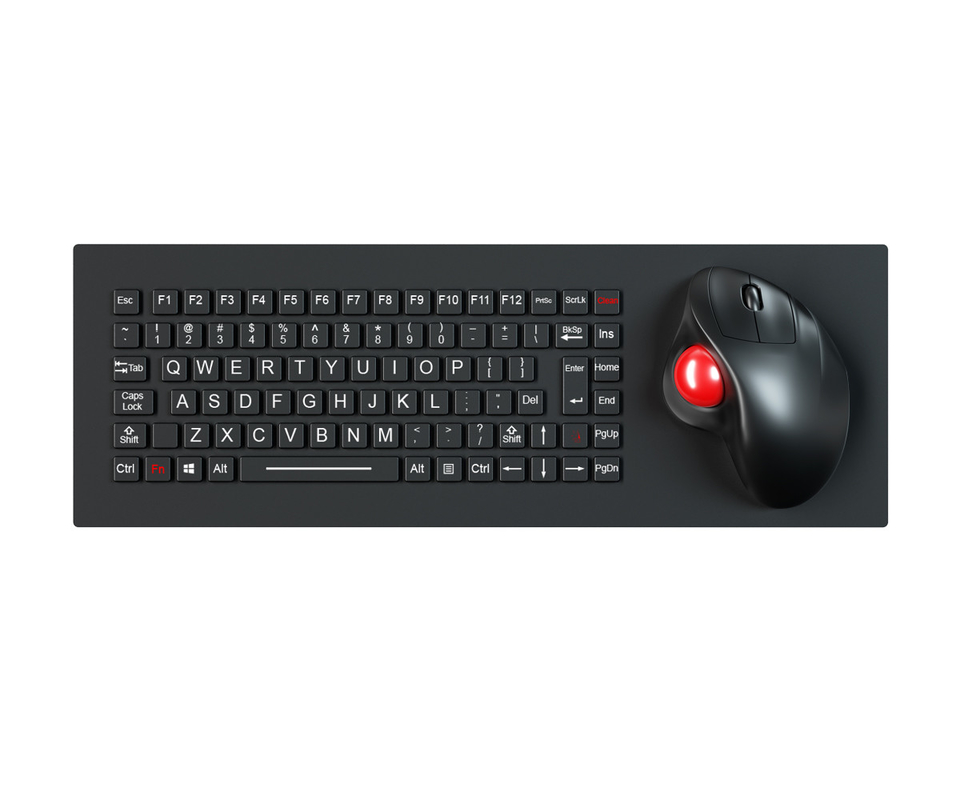

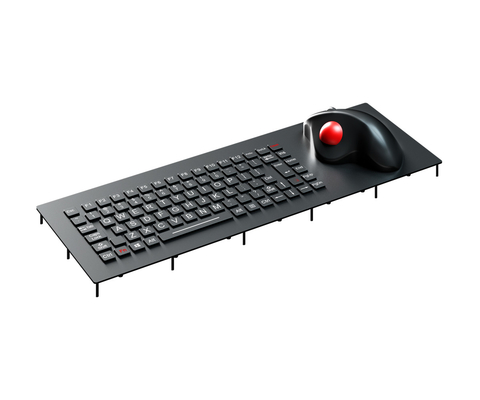

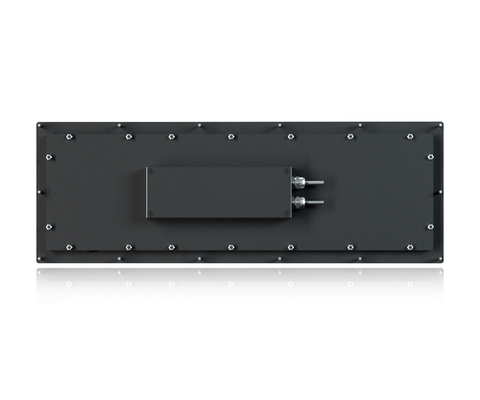

89 keys IP65 dynamic water proof vandal proof stainless steel military level marine keyboard with durable PC keycaps, with 12 function keys F1, F2,...F12 on the top line, integrated with IPX6 rated ergonomic 34mm optical trackball module with 500~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, with 3 mouse buttons for right/left clicking, as well as middle wheel for scrolling function. Ruggedized military grade PCB with carbon-on-gold key switch technology with long stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on the top stainless steel plate, one complete silicone rubber along rear stainless steel plate for easily mounting and sealing tightly with cabinet , FN + Clean combination keys for easily cleaning without taking the keyboard away from PC. Front panel with thread bolts for the top panel mounting. Adjustable red backlight included. Dual USB interface or aviation plug, which meets IEC60945-2002, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, fungus, solar radiation etc.). It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc., designed to meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 440.0mm x 153.0mm (front panel)
| MECHANICAL DATA | |
| Key | 89 keys, durable and robust polymer keys |
| Key travel | 1.20mm±0.10mm |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 32.0mm for enter key, 14.0mm x 86.0mm for space bar |
| Actuation Force |
2.0 N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.2N for key 14.0mm x 32.0mm (pressure point) |
| Switch life | more than 5 million of operations |
| Plate | Aviation plug or USB interface |
| Trackball | IPX6 rated ergonomic thumb ball optical mouse |
| Interface | Aviation plug or USB interface |
| G.W. | 2.5KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off), 300mA (with backlight on) |
| Meet MIL-STD-461G-EMC-EMI-EMS-ESD: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | Military PCB with carbon-on-gold key switch technology |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE, FCC, IEC60945-2002 certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
